High Precision Aluminum CNC Machining Rack Panels Part

Custom high precision aluminum cnc machining rack panels part manufacturers & suppliers - JXD precision metal products inc supply bulk wholesale high precision cnc machining part export at factory price,oem/odm solution services,get a quote now!

Color:

Email Us

Product Description and Display
product specification
contact

Company Overview

Established in 2003, JXD is located in Haicang District, Xiamen, Fujian Province, covering an area of approximately 4500 square meters. We have evolved into a leading supplier for multiple listed companies, earning acclaim for our comprehensive processing capabilities from clients worldwide. In 2023, JXD achieved ISO 16949 automotive quality management and ISO 14001 environmental management certifications, ensuring all products meet rigorous standards.

Specializing in the design and production of precision metal components, our products find application in electrical, optoelectronic, new energy, and military sectors. With over 60 advanced CNC machines and a team of 50+ skilled professionals, along with a state-of-the-art digital production management system, JXD guarantees quality and efficiency to meet customer demands.

Product Information

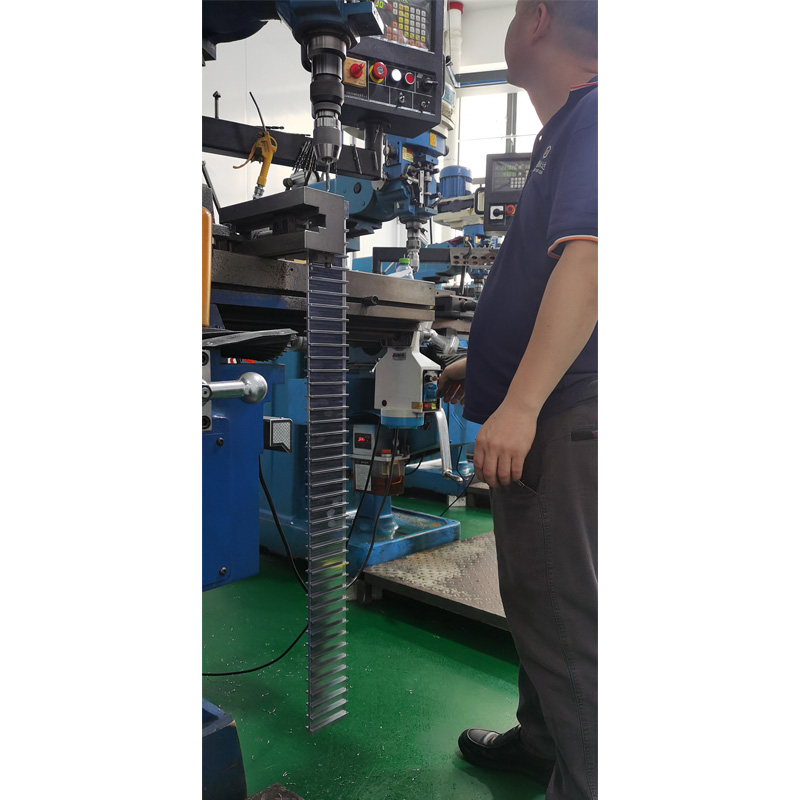

Product name: rack aluminum plate/High Precision Aluminum CNC Machining Rack Panels Part
Specification: 1000.5*92*11
Material: 6061-T6
Style: 5 styles
Quantity: 320 pieces each
Surface treatment: black anodizing
Application: guide side plate on precision non-standard equipment

Processing Challenges

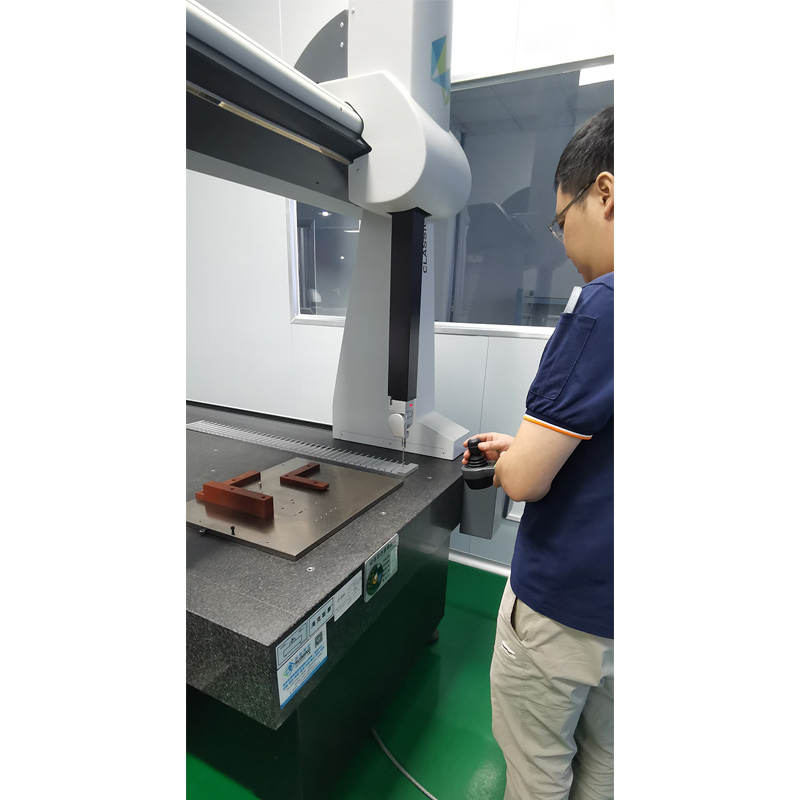

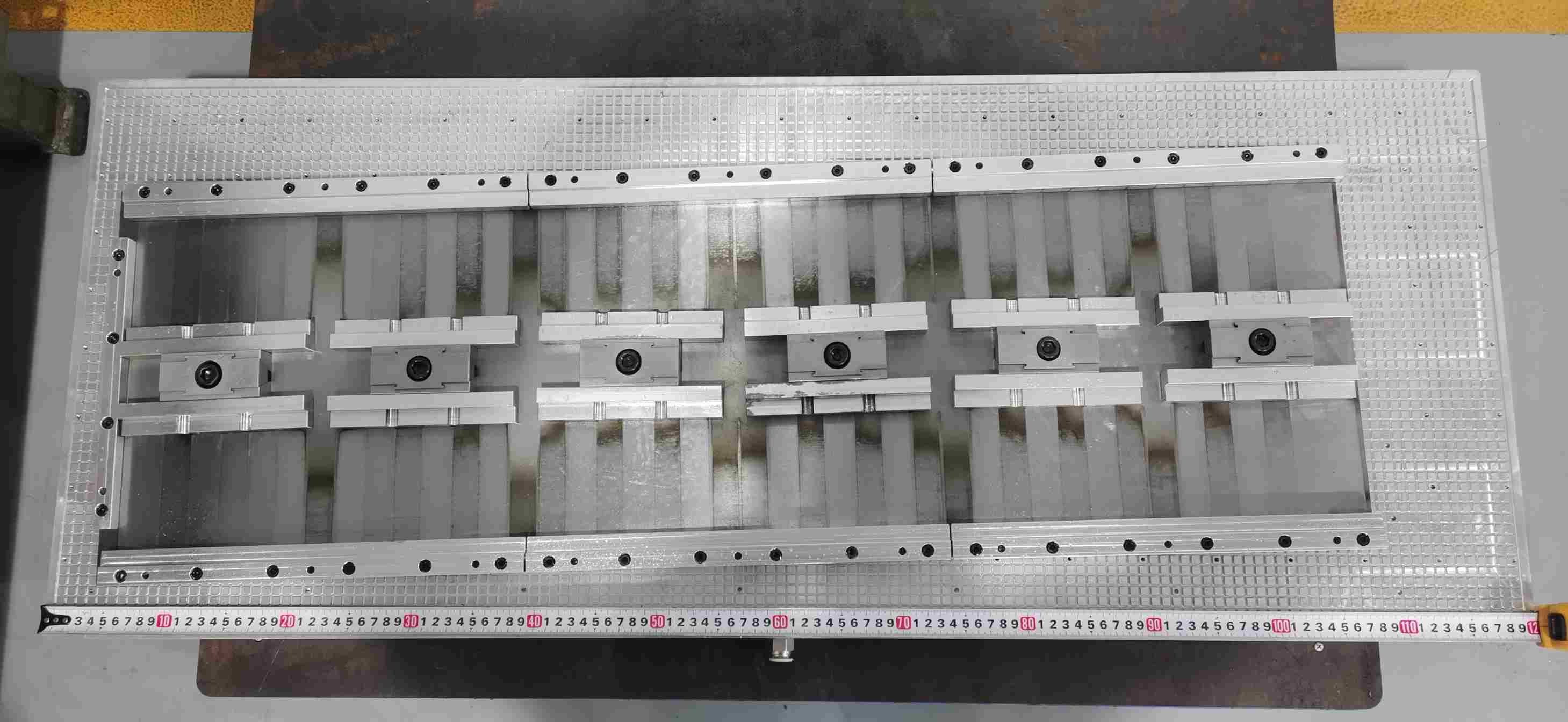

Long rack workpieces are easy to deform. The drawing size 1000.5±0.05mm and flatness 0.03 are the biggest technical difficulties of this product. We designed and customized an extra-long vacuum suction cup workbench as a positioning tool to maximize the deformation and stability of the product; secondly, the impact of surface treatment on dimensional tolerance must also be considered, because the process stability of surface treatment is very important. After the product surface treatment, the size needs to be tested again; finally, extra-long precision workpieces require three-coordinate measuring equipment to accurately measure the size to ensure product quality!
Attribute
Details
Product Name
Rack Aluminum Plate
Specifications
1000.59211 mm
Material
6061-T6 aluminum alloy
Styles
Available in 5 options
Quantity
320 pieces per style
Surface Treatment
Black anodized
Application Areas
Guide side plates for precision non-standard equipment in electrical, optoelectronics, new energy, and military industries
Processing Challenges
- Long rack workpieces prone to deformation <br> - Dimension control (1000.5卤0.05mm) and flatness (0.03) <br> - Impact of surface treatment on dimensional tolerances <br> - Requires CMM for accurate dimension measurement
Production Equipment
Over 60 advanced CNC precision machining equipment
Team
More than 50 skilled and experienced professionals
Quality Certifications
IATF 16949 automotive quality management system certification <br> ISO 14001 environmental management certification

Attribute	Details
Product Name	Rack Aluminum Plate
Specifications	1000.59211 mm
Material	6061-T6 aluminum alloy
Styles	Available in 5 options
Quantity	320 pieces per style
Surface Treatment	Black anodized
Application Areas	Guide side plates for precision non-standard equipment in electrical, optoelectronics, new energy, and military industries
Processing Challenges	- Long rack workpieces prone to deformation <br> - Dimension control (1000.5卤0.05mm) and flatness (0.03) <br> - Impact of surface treatment on dimensional tolerances <br> - Requires CMM for accurate dimension measurement
Production Equipment	Over 60 advanced CNC precision machining equipment
Team	More than 50 skilled and experienced professionals
Quality Certifications	IATF 16949 automotive quality management system certification <br> ISO 14001 environmental management certification

High Precision Aluminum CNC Machining Rack Panels Part
